instruction manual
- Vacuum Insulated Bottle with Bottle Boot [MTA-B]

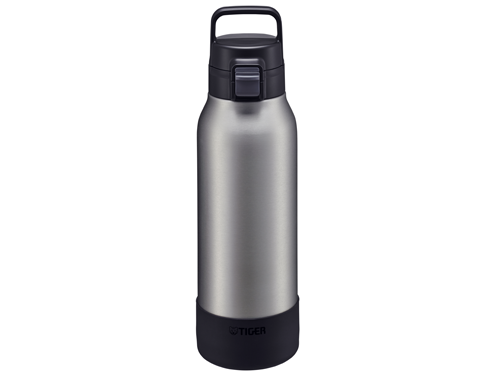

Vacuum Insulated Bottle with Bottle Boot
Model No.
MTA-B ⟨For keeping beverages cold only⟩
Colors
- 0.80 L size
- 1.0 L size
- 1.2 L size
- 1.5 L size
Specifications
| Model No. | MTA-B080 | MTA-B100 | MTA-B120 | MTA-B150 |
|---|---|---|---|---|
| Capacity*1 | 0.80 L / 27.1oz | 1.0 L / 33.8oz | 1.2 L / 40.6oz | 1.5 L / 50.7oz |
| Cold retention (6 hours)*2 | Less than 7 ℃ / 45℉ | Less than 7 ℃ / 45℉ | Less than 7 ℃ / 45℉ | Less than 7 ℃ / 45℉ |
| External dimensions (approx.) Width × Depth × Height*3 |
7.5×8.5×31.2 cm 2.95×3.35×12.28 inch |
9.1×9.1×27.5 cm 3.58×3.58×10.83 inch |
9.1×9.1×30.9 cm 3.58×3.58×12.17 inch |
9.1×9.1×36.1 cm 3.58×3.58×14.21 inch |
| Weight (approx.)*4 | 0.37 kg / 0.82 lbs | 0.46 kg / 1.01 lbs | 0.48 kg / 1.06 lbs | 0.55 kg / 1.21 lbs |
| Model No. | MTA-B080 |
|---|---|
| Capacity*1 | 0.80 L / 27.1oz |
| Cold retention (6 hours)*2 | Less than 7 ℃ / 45℉ |
| External dimensions (approx.) Width × Depth × Height*3 |
7.5×8.5×31.2 cm 2.95×3.35×12.28 inch |
| Weight (approx.)*4 | 0.37 kg / 0.82 lbs |
| Model No. | MTA-B100 |
|---|---|
| Capacity*1 | 1.0 L / 33.8oz |
| Cold retention (6 hours)*2 | Less than 7 ℃ / 45℉ |
| External dimensions (approx.) Width × Depth × Height*3 |
9.1×9.1×27.5 cm 3.58×3.58×10.83 inch |
| Weight (approx.)*4 | 0.46 kg / 1.01 lbs |
| Model No. | MTA-B120 |
|---|---|
| Capacity*1 | 1.2L |
| Cold retention (6 hours)*2 | Less than 7 ℃ / 45℉ |
| External dimensions (approx.) Width × Depth × Height*3 |
9.1×9.1×30.9 cm 3.58×3.58×12.17 inch |
| Weight (approx.)*4 | 0.48 kg / 1.06 lbs |
| Model No. | MTA-B150 |
|---|---|
| Capacity*1 | 1.5L |
| Cold retention (6 hours)*2 | Less than 7 ℃ / 45℉ |
| External dimensions (approx.) Width × Depth × Height*3 |
9.1×9.1×36.1 cm 3.58×3.58×14.21 inch |
| Weight (approx.)*4 | 0.55 kg / 1.21 lbs |
- The capacity is the actual volume of water that can be stored in the product when the stopper is closed. This is not the “slightly less than full” volume described in “Safety Precautions”.
- Cold retention performance has been calculated by filling the product with cold water at 4±1℃ (39±2℉) and leaving it at a room temperature of 20±2℃ (68±4℉) for 6 hours.
- The figures do not include the bottle boot.
- The figures include the bottle boot.
About antibacterial processing
MTA-B uses silver (Ag) antibacterial processing.*
- The stopper, gasket and bottle boot have been processed with an antimicrobial substance to ensure a clean surface.
-
- Testing laboratory
- DAIWA CHEMICAL INDUSTRIES CO.,LTD. EVALUATION
TECHNICAL CENTER
-
- Testing method
- The material meets the JIS Z 2801 (ISO 22196) test for
antimicrobial activity and efficacy.
-
- Subject area
- Stopper, gasket, bottle boot
-
- Processing method
- Mixing into plastic or silicone rubber
-
- Antibacterial agent
- Ag inorganic antibacterial agent
-
- Testing result
- Antibacterial activity value 2.0 or higher
