instruction manual
- Vacuum Insulated Bottle With Bottle Sling [MTA-Q]
- How to clean
INDEXProduct / Specifications
How to clean
- Clean the product on the same day after each use.
- Use kitchen detergent (for table or cookware).
- Use a soft sponge or cloth.
- Clean the product frequently to prevent odors.

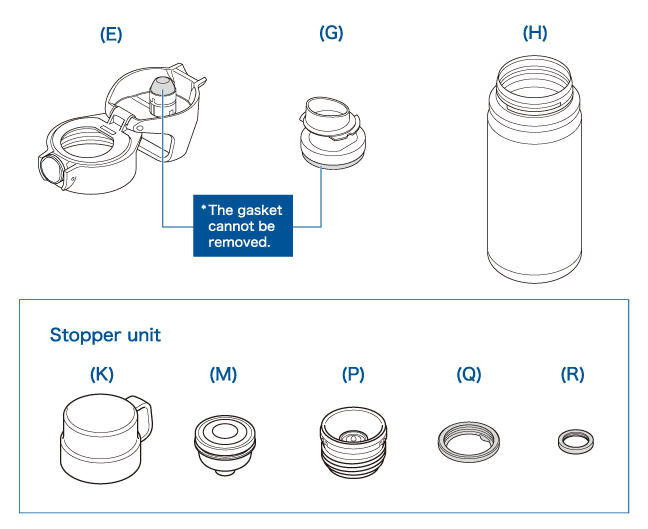

Parts to wash after each use
- Wash each part using a sponge and diluted detergent water or lukewarm water, and then thoroughly rinse with water.
- Wipe any droplets off with a dry cloth and dry the parts thoroughly.
- (E) Lid
- (G) Spout*
- (H) Body
- (K) Cup
- (M) Inner stopper A
- (P) Inner stopper B*
- (Q) Large gasket*
- (R) Small gasket*
* Remove and wash.
CAUTION
- Do not soak the body, stopper part, and stopper unit for a long time when there is a risk that water may get into the parts.
- Do not wash the body with the parts attached.
- After washing the body, immediately use a dry cloth to wipe off the moisture. If all droplets are not wiped off, they may leave water stains, cause rust, or stain other items.
- Do not use thinners, cleansers, bleaches, cleaning wipes, metallic scrubbing brushes, or nylon scrubbing brushes.
- Do not place this product in a dishwasher/dryer, a dish dryer, or similar equipment. Also, do not boil this product. (Parts other than the inner stopper of the stopper unit can be washed in a dishwasher/dryer.)
- Do not use boiling water. (This does not apply to the inside of the body or the gaskets)
- Be sure to attach the spout.
- Be sure to attach the gaskets of the stopper unit.
- If the product will not be used for a long time, fully clean and dry it.
How to clean bottle sling
-
Place the bottle sling in a laundry net.
Wash the bottle sling in a washing machine set to the handwash course or the dry course. Alternatively, wash the bottle sling by hand. Then, dry the bottle sling well.
Click here to see the list of cleaning instructions.
CAUTION
- Do not use chlorine or oxygen bleaches on the bottle sling. Discoloration, fading, or color loss may occur.
- Do not use a clothes dryer to dry the bottle sling. Doing so may cause shrinking.
If stains appear inside the body
When red, rust-like spots or a substance that is rough to the touch appears
Such stains can be caused by minerals in water, such as calcium, magnesium, and iron. When cleaning these substances, please use citric acid, which is available at supermarkets and drug stores.
- Dilute the citric acid (approximately 10 g) with lukewarm water, then pour it into the body.
- After 2 to 3 hours, wash the body with a soft brush and then thoroughly rinse it.
- Dry the body thoroughly.
When an odor remains on the gasket
Depending on the beverage, the beverage odor may remain on the gasket. In this case, leave the gasket in boiling water for approximately 30 minutes. If the odor is still remains, please purchase a new gasket (sold separately).
Click here to purchase consumable parts.
Removing and attaching the spout

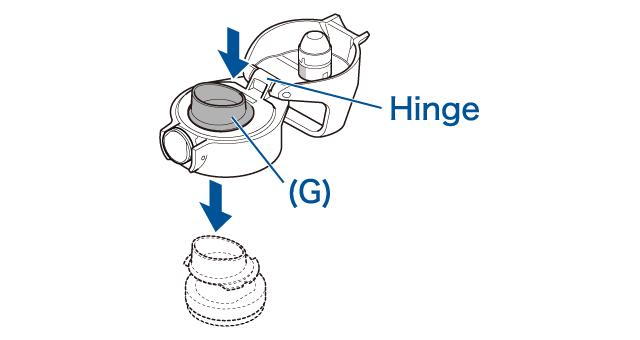

To remove
Push the hinge side slowly to remove.
Spout can not be removed, even if its front side is pushed.
To attach
(1) After fitting the front side of spout, set the hinge side.
(2) Make sure the spout is fixed.
［For stopper unit］
Removing and attaching the Inner stopper A

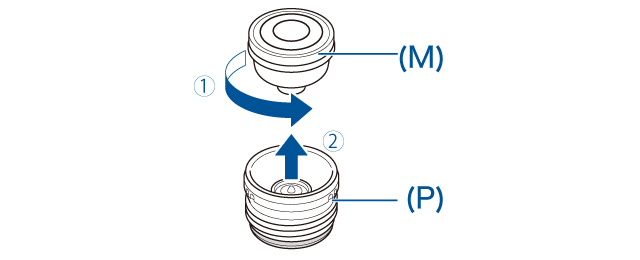

To remove
Screw the inner stopper A off the inner stopper B.
(P) Inner stopper B

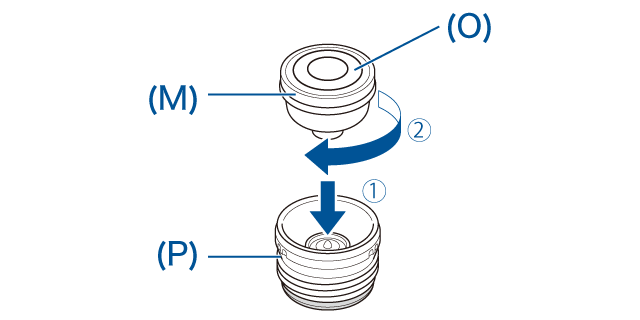

To attach
Securely attach inner stopper A to inner stopper B, and press the close button.
(O) Close button
(P) Inner stopper B
［For stopper unit］

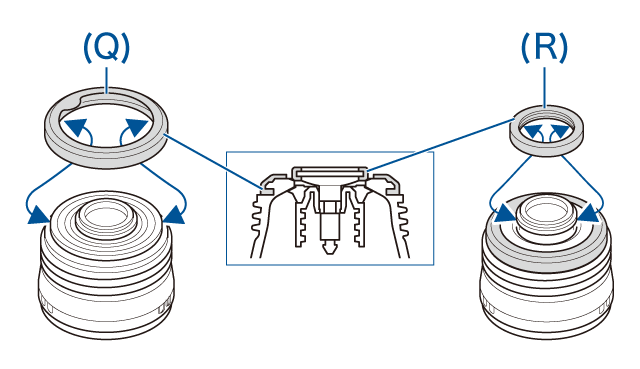

Removing and attaching the large gasket and small gasket
When removing the large and small gaskets, hold their edges and remove them slowly.
When attaching the large and small gaskets, set them properly, paying close attention to their positions and directions.
(Q) Large gasket
(R) Small gasket
CAUTION
- When attaching the large and small gaskets, make sure to fit it completely in the proper direction. There is a risk of leakage, causing scalds* or stains.
* When using products that keep beverages hot.
List of cleaning instructions
How to clean
| How to clean | Washing (No metal or nylon scrubbers) |
Soak and Wash | Dishwasher Dryer |
|
|---|---|---|---|---|
| Body | Inside/Outside | ✓ | × | ✓ |
| Stopper part | ✓ | × | ✓ | |
| Stopper unit | Cup | ✓ | × | ✓ |
| Inner stopper A/B | ✓ | × | × | |
| Large gasket/ Small gasket |
✓ | ✓ | ✓ | |
